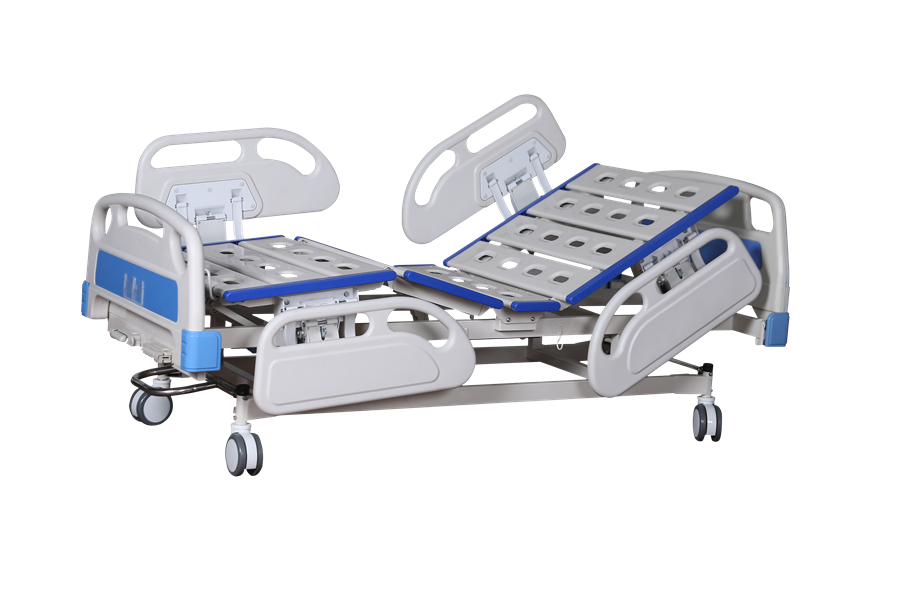

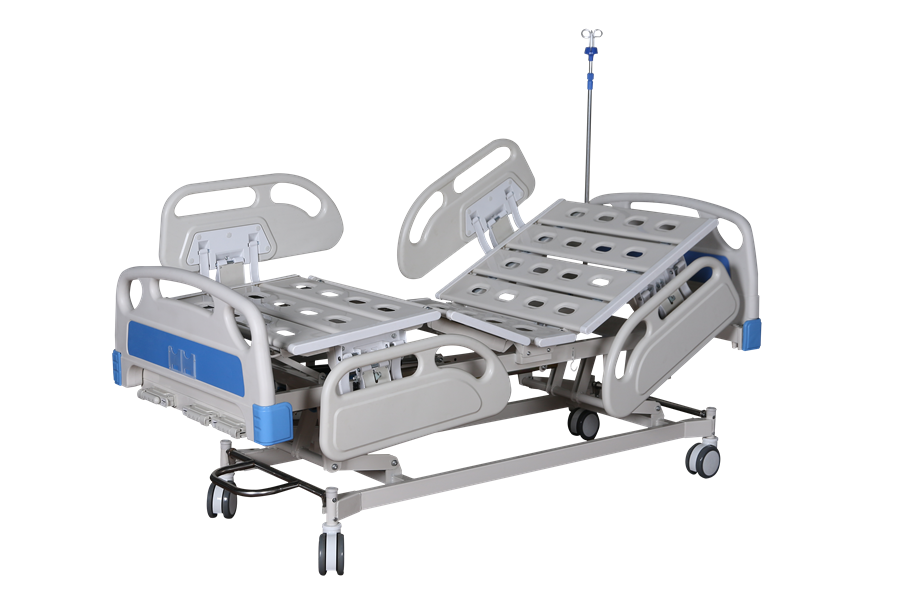

SFD-B3201 3 Crank Manual Bed
Dimensions:length 2130mm width 1000mm height range: 500mm to 780mm
Product Features
Product parameter
2.1 Three groups of joysticks: hidden design, posture lifting logo is pasted to make the operation clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, and easy to operate; it can flexibly adjust the patient's back, leg angle, and bed height. Adopt in-place limit protection device, beautiful appearance, wear resistance, long service life
2.2 Back tilt angle 0~75±5°, leg tilt angle: 0~45±5°, calf board angle adjustable, bed height adjustment 500-780mm
2.3 Bearing weight: ≥220kg; the back bed surface adopts a double support structure, which is firm and firm. The double supports are stamped and formed by cold steel plates to strengthen the bearing capacity of the back plate. The rocker is less stressed, making it easier, more flexible and safer to shake
2.4 Upside down four-piece PP guardrail with control switch is installed on the side, which can be raised and lowered. When the guardrail is lowered and contracted, it is flush with the bed surface, which can reduce space and facilitate clinical operation
2.5 There are 4 drip holder holes on the front and back of the bed frame, and 4 urine drainage bag hooks on both sides of the bottom of the bed frame. The drip holder can be placed at the bottom of both sides of the bed frame when not in use.
2.6 Plastic mattress rails are installed at the tail and both sides of the bed surface to prevent the mattress from sliding and shifting when the back plate is raised and lowered. It can also be used as a handle to lift the calf bed panel
2.7 An ABS flip-type dining table is placed at the end of the bed, which is convenient and safe to use; it can be folded to the end of the bed when not in use

Three-rocker nursing bed
Height of bed body:
height 500-780mm
01 /
product material
High quality carbon steel pipe
The bed frame is made of high-quality carbon steel pipe 80*40*1.5mm, double beam structure, stable and strong
High quality cold rolled carbon steel sheet
The bottom frame is high-quality cold-rolled carbon steel pipe 60*30X1.5mm, and the bed lifting lever is Ø38*3.0 round pipe
New ABS reinforced plastic material
The streamlined luxury head and foot board and the new ABS reinforced plastic material are integrally blow-molded. There is an information card slot on the outside of the foot board and an anti-collision wrap angle. Locking mechanism, easy to operate, metal hooks are used at the connection with the bed, easy to disassemble and assemble, with locking insurance
High quality seamless steel pipe
The bed panel is made of high-quality cold-rolled steel plate with one-time punching and forming, and the thickness of the plate is greater than 1.0mm. The movable joint of the back bed board adopts double support and unloading structure, and the supporting and rotating shaft is made of high-quality seamless steel pipe Φ32*3.0mm
Antibacterial powder coating
After degreasing and rust removal, the entire bed is coated with double phosphating + electrostatic antibacterial powder, and SGS international standard coating treatment. The bed body coating has passed the inspection and certification of provincial inst
Product configuration

5-inch universal cover mute wheel
Equipped with a medical 5-inch universal cover mute wheel, high wear resistance, noiseless, stable and firm, the caster body is made of aluminum alloy by die-casting, self-lubricating sealed bearing, waterproof and dustproof, wheel surface polyurethane material, quiet and wear-resistant, anti-wear Winding plastic bottom pad
Organic plastic medical record card slot
Organic plastic medical record card slot on the outside of the footboard
Sundries rack
A utility shelf under the bed
High quality stainless steel four hook infusion stand
Optional high-quality stainless steel four-hook infusion stand with telescopic adjustment that matches the bed
Tri-fold mattress
Optional 6-10 cm tri-fold mattress that matches the bed, with vents on both sides of the mattress, and a waterproof and wear-resistant cloth jacket
ABS bedside table or plastic steel bedside table
Optional ABS bedside table or plastic steel bedside table, the color and the bed are coordinated as a whole
