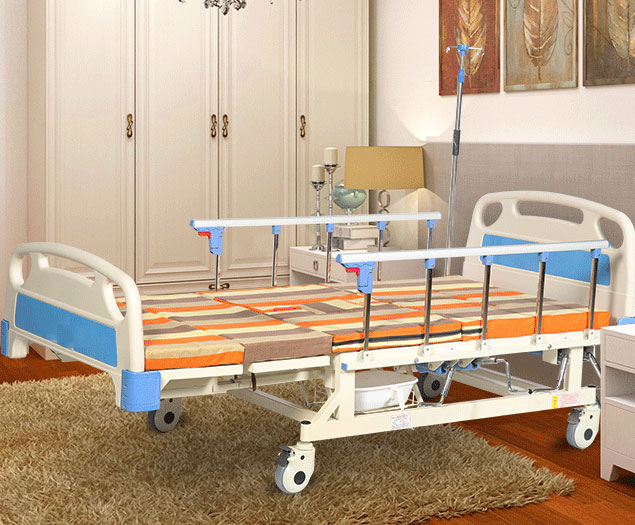

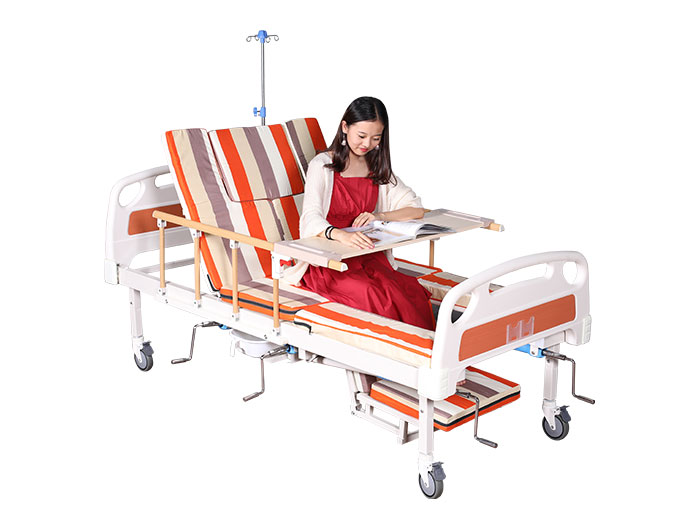

Home Nursing Bed
Specifications External dimensions: length 2130mm, width 960mm, bed board height 500mm
Product Features
Product parameter
2.1 Four groups of joysticks: Hidden design, with posture lifting logo pasted to make the operation clear at a glance. The rocker is firm and flexible, no noise, and easy to operate; it can flexibly adjust the patient's back angle, leg angle, left and right rollover angle of the bed, and the movement of the bedpan support. Beautiful appearance, wear resistance, long service life
2.2 The bedpan movement adjustment, the use of screw adjustment, is convenient and even, avoids the sliding caused by the bedpan moving too fast, and causes the stool to splash
2.3 The back tilt angle is 0~75±5°, the leg tilt angle: -75~40±5°, the left and right rollover angles of the bed board are each 0~40±5°
2.4 Bearing weight: ≥200kg; the back bed surface adopts double support structure, which is firm and firm. The double supports are stamped and formed by cold steel plates to strengthen the bearing capacity of the back plate. The rocker is less stressed, making it easier, more flexible and safer to shake

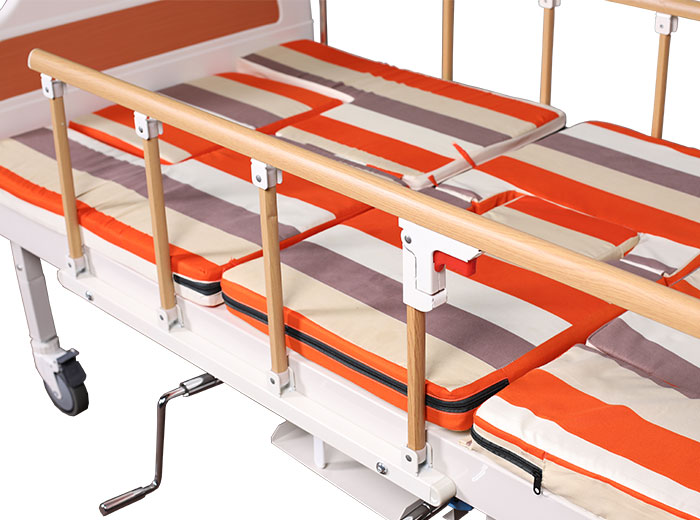

2.5 The side guardrail is full-covered, four-gear lengthened design, total length 1050mm, height 400mm when unfolded; D-type aluminum alloy handrails, surface hardened treatment; steel stamping base; four aluminum alloy guardrail pillars, wear-resistant, non-deformable, can be When it is retracted, it is slightly higher than the bed surface to prevent the mattress from shifting; anti-pinch design, high-strength fiberglass nylon fast positioning switch; beautiful and generous, with anti-collision function. Lengthened design can be placed on the table board
2.6 There are 4 drip holder holes on both sides of the bed frame, and 4 urine drainage bag hooks on both sides of the bottom of the bed frame. The drip holder can be placed at the bottom of both sides of the bed frame when not in use.


Home Nursing Bed
Features
Height of bed body:
Bed board height 500mm
01 /
07
product material
High quality carbon steel pipe
The bed frame is made of high-quality carbon steel pipe 80*40*1.2mm, double beam structure, stable and strong
High quality cold rolled carbon steel sheet
The bed legs are high-quality cold-rolled carbon steel tubes 40*40X1.5mm
New ABS reinforced plastic material
The new ABS reinforced plastic material head and foot board, the outside of the bed foot board are equipped with information card slots and anti-collision wrap angle, which has anti-collision function. Can also be used as a CPR board for emergency use, smooth and seamless, with self-locking mechanism on both sides , Easy to operate, metal hooks are used at the connection with the bed, easy to disassemble and assemble, with locking insurance
High quality seamless steel pipe
The bed panel is made of high-quality cold-rolled steel plate by one-time punching and forming, and the thickness of the plate is greater than 0.8mm. The movable joint of the back bed board adopts double support and unloading structure, and the supporting and rotating shaft is made of high-quality seamless steel pipe Φ32*3.0mm
Antibacterial powder coating
After degreasing and rust removal, the entire bed is coated with double phosphating + electrostatic antibacterial powder, and SGS international standard coating treatment. The bed body coating has passed the inspection and certification of provincial inst
Product configuration



Medical 5-inch universal caster
Equipped with medical 5-inch universal casters, high wear resistance, noiseless, stable and firm, self-lubricating sealed bearings, waterproof and dustproof, wheel surface polyurethane material, quiet and wear-resistant, anti-winding plastic bottom cushion
Organic plastic medical record card slot
Organic plastic medical record card slot on the outside of the footboard
mattress

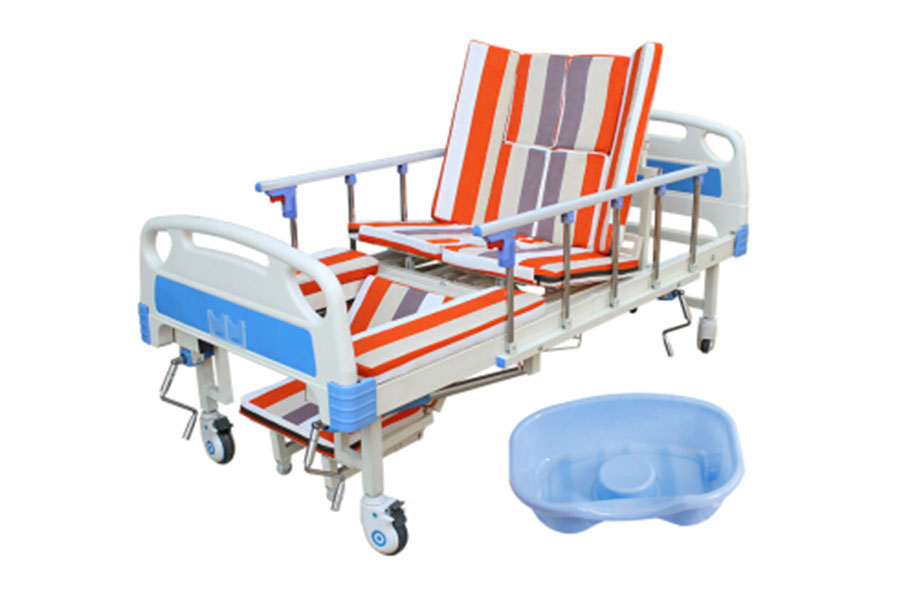

Equipped with a mattress that matches the structure of the bed. Shampoo, bedpan, wooden dinner board
Stainless steel four hook infusion stand
Optional high-quality stainless steel four-hook infusion stand with telescopic adjustment that matches the bed
ABS bedside table
Optional ABS bedside table or plastic steel bedside table, the color and the bed are coordinated as a whole
Wooden headboard
Optional streamlined high-quality wooden headboard and footboard, with the warmth of home
