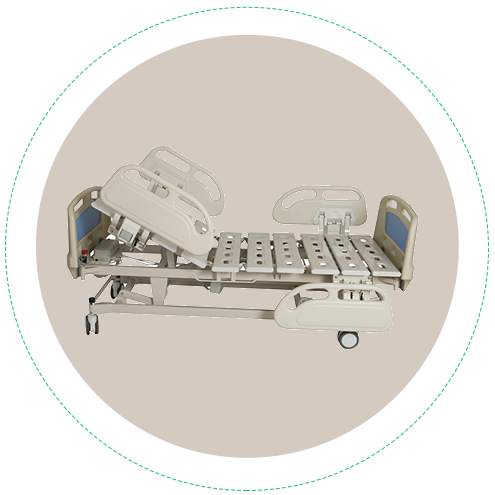

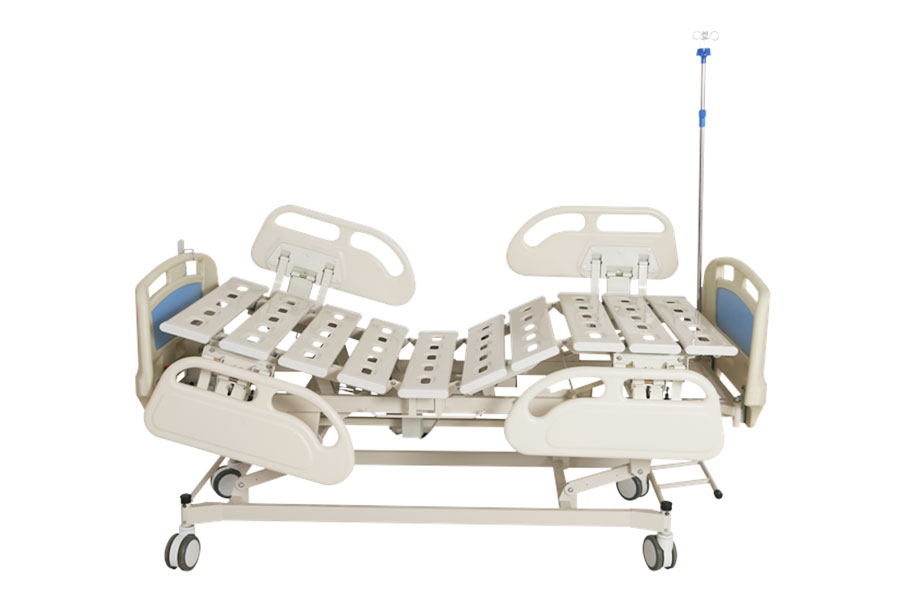

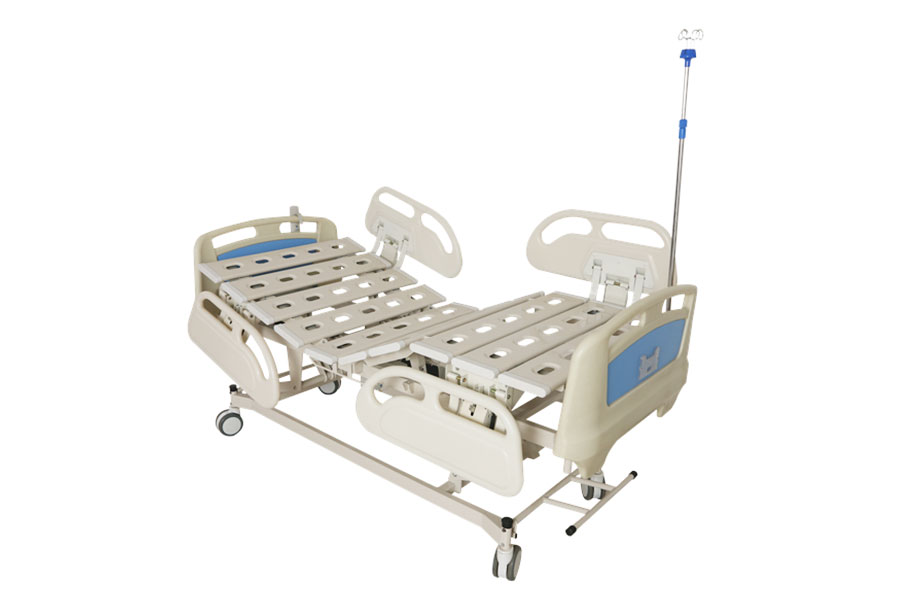

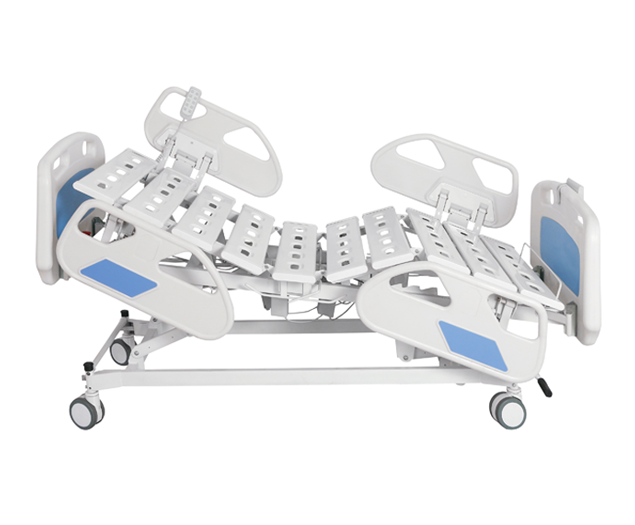

SFD-3201 Three-function Electric Bed
Specifications External Dimensions:2150*1000*480~760 Bed size:1920*830mm
Product Features
Product Parameter

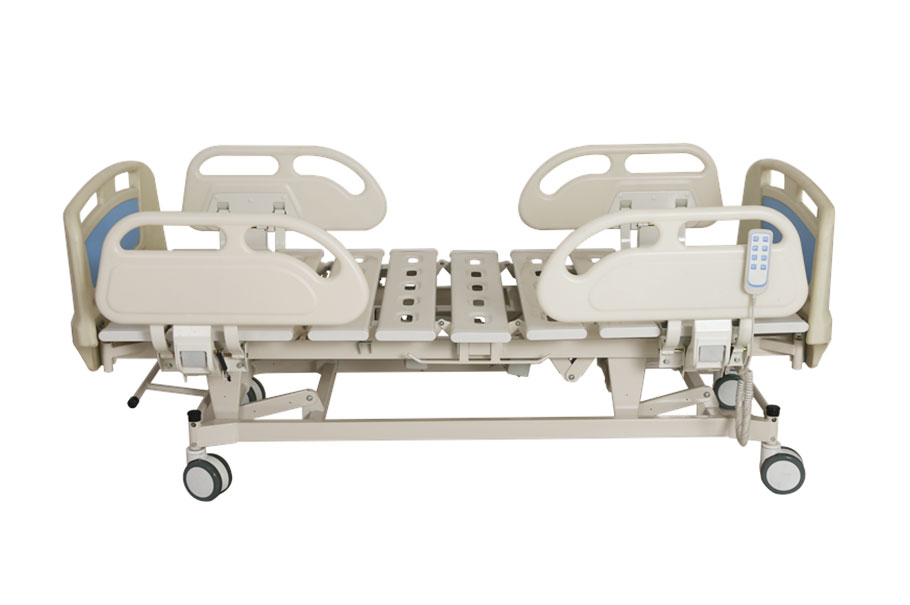

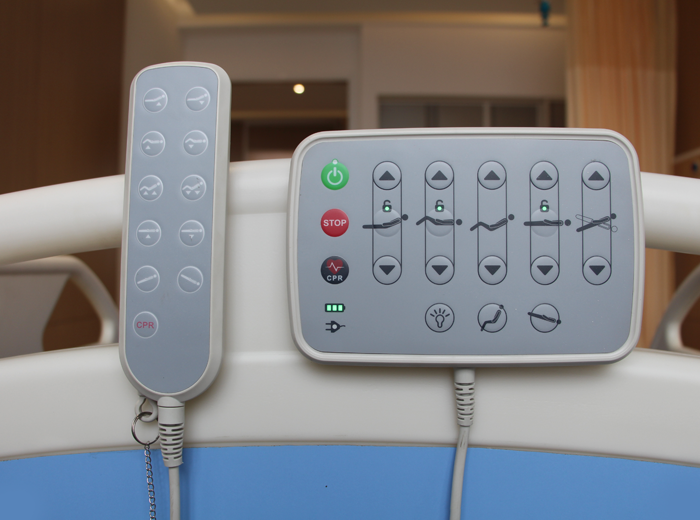

2.1 Hand-held controller, hand-button type to realize all functional actions, can also automatically turn left and right, the interval can be customized (regular interval 30 minutes), when turning left and right, the back automatically returns to the level state

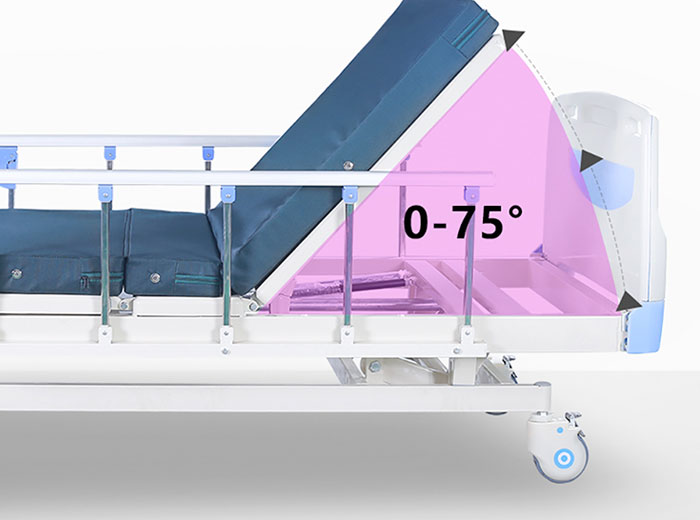

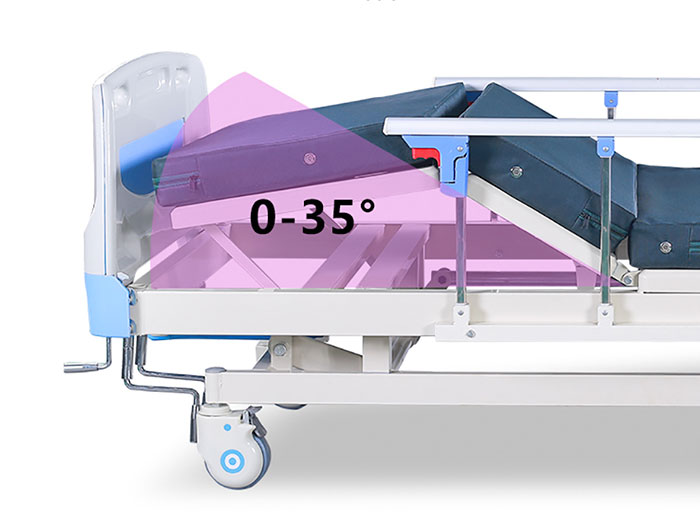

2.2 Back tilt angle 0~75±5°, leg tilt angle: -75°-40°
2.3 Left and right rollover angle 0~45±5°
2.4 Carrying weight: ≥200kg, lower legs and back, wash your hair and feet on the bed
2.5 The side guardrail is fully covered with a height of 400mm when unfolded; D-shaped aluminum alloy handrails, with surface hardening treatment; steel stamping base; 6 aluminum alloy guardrail pillars, wear-resistant, non-deformable, shrinkable and flat, slightly higher when shrinking The bed surface can prevent the mattress from shifting; anti-pinch design, high-strength fiberglass nylon fast positioning switch; beautiful and generous, with anti-collision function
2.6 There are 4 drip holder holes at both ends of the bed frame, and 4 urine drainage bag hooks are provided on both sides of the bottom of the bed frame. The drip holder can be placed at the bottom of both sides of the bed frame when not in use.

Three Function Electric Bed
Product Details

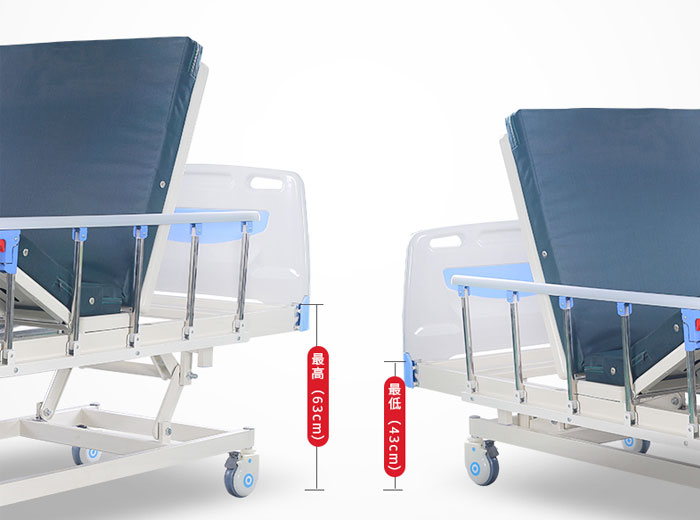

Height of bed body:
480mm~760mm,Can be made as required
01 /
Product Material
High quality carbon steel pipe
The bed body is made of high-quality carbon steel pipe 60*30*1.5mm, double beam structure, stable and strong
High quality cold rolled carbon steel sheet
The bed plate is made of high-quality cold-rolled carbon steel plate with one-time punching and forming, and the thickness of the plate is greater than 1.0mm

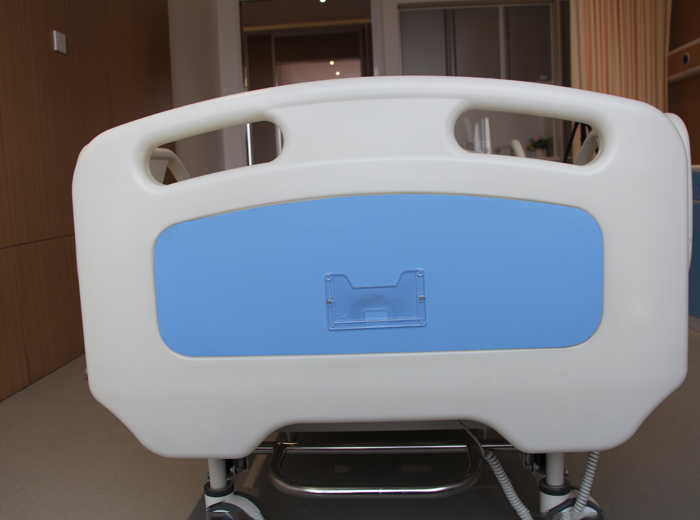

New ABS reinforced plastic material

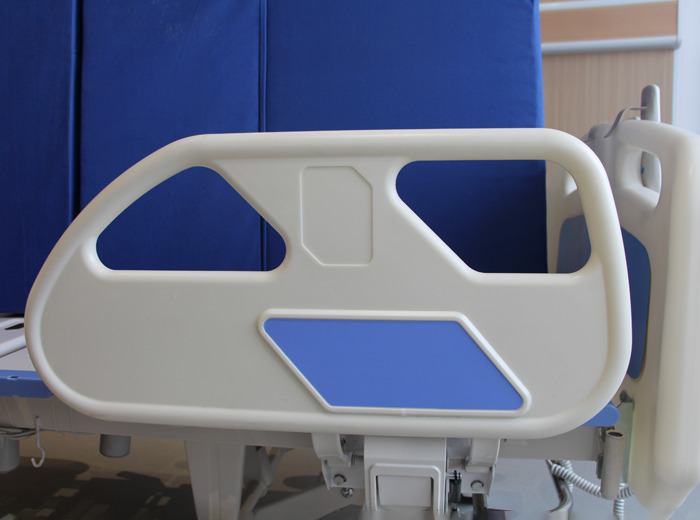

Streamlined luxury head and foot board, brand new ABS reinforced plastic material, integrally blow-molded, with information card slot and anti-collision wrap angle on the outside of the foot board. It has anti-collision function. It can also be used as a CPR board for emergency use. The surface is smooth, tasteless and seamless. , Easy to clean, impact-resistant, non-deformation, fire-proof, stable and reliable, with self-locking mechanism on both sides, easy to operate, metal hooks are used at the connection with the bed, easy to disassemble, with locking insurance
High quality seamless steel pipe
The movable joint of the back bed board adopts double support and unloading structure, and the supporting and rotating shaft is made of high-quality seamless steel pipe Φ32*3.0mm
Antibacterial powder coating
After degreasing and rust removal, the entire bed is coated with double phosphating + electrostatic antibacterial powder, and SGS international standard coating treatment. The bed body coating has passed the inspection and certification of provincial inst
Product configuration

DC motor, original battery
Equipped with 24V DC motor system, with CE, UL and other electrical safety certifications, EMI performance guarantee, quiet operation and no noise. Equipped with original storage battery, can work for 8 hours when the network power is cut off, the motor brand is optional
Medical 5-inch central control caster
Equipped with medical 5-inch central control casters, high wear resistance, no noise, stable and firm, pedal brake lever to achieve the brake and release of the casters
Organic plastic medical record card slot
Organic plastic medical record card slot on the outside of the footboard
High quality stainless steel four hook infusion stand
Equipped with a high-quality stainless steel four-hook infusion stand with telescopic adjustment that matches the bed
Under the bed sundries rack
Optional to match the bed
Mobile table
Optional mobile dining table that matches the bed, adjustable height, durable and easy to clean
Tri-fold mattress
Optional 8~12 cm thick tri-fold mattress that matches the bed, with ventilation holes on both sides of the mattress
ABS bedside table
Optional ABS bedside table or plastic-steel bedside table, the color and the bed are harmonized as a whole
