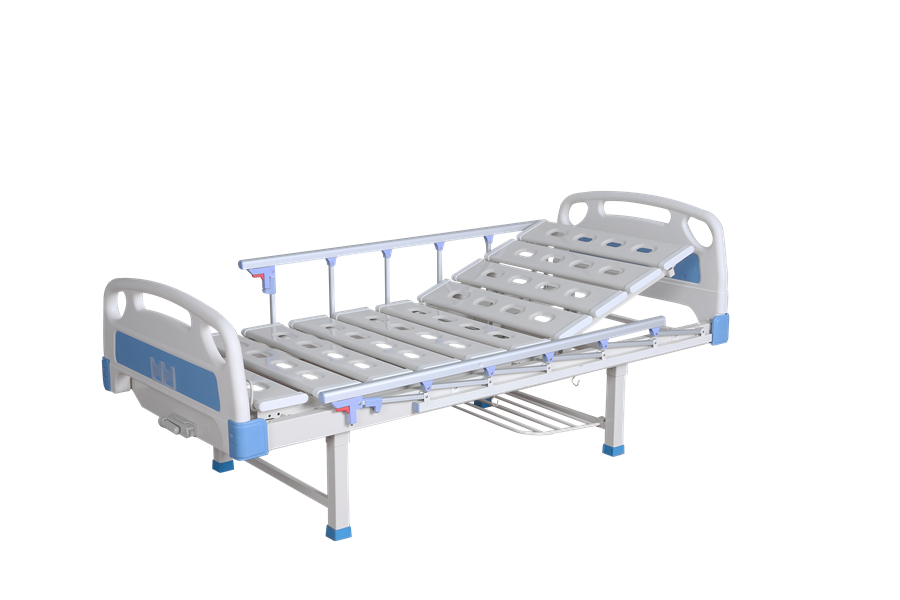

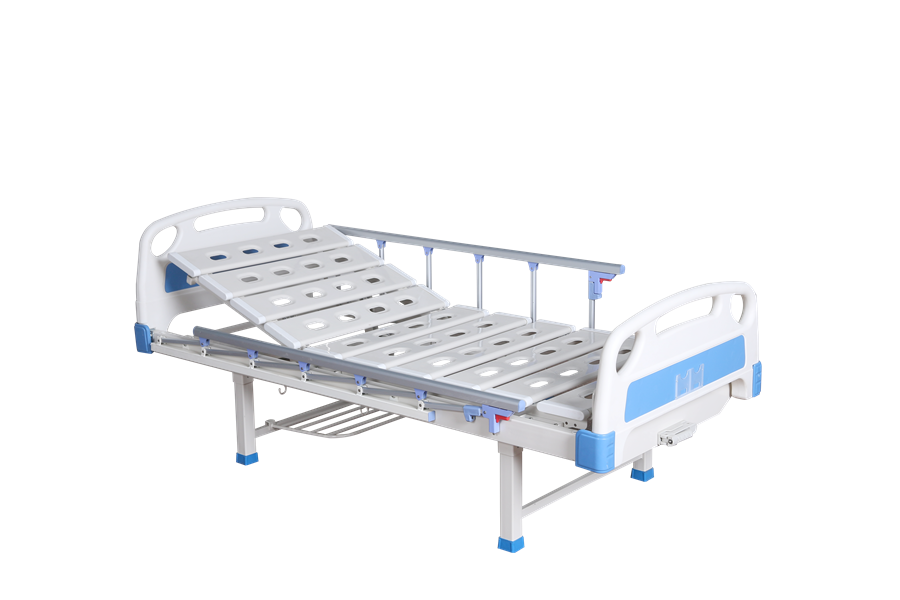

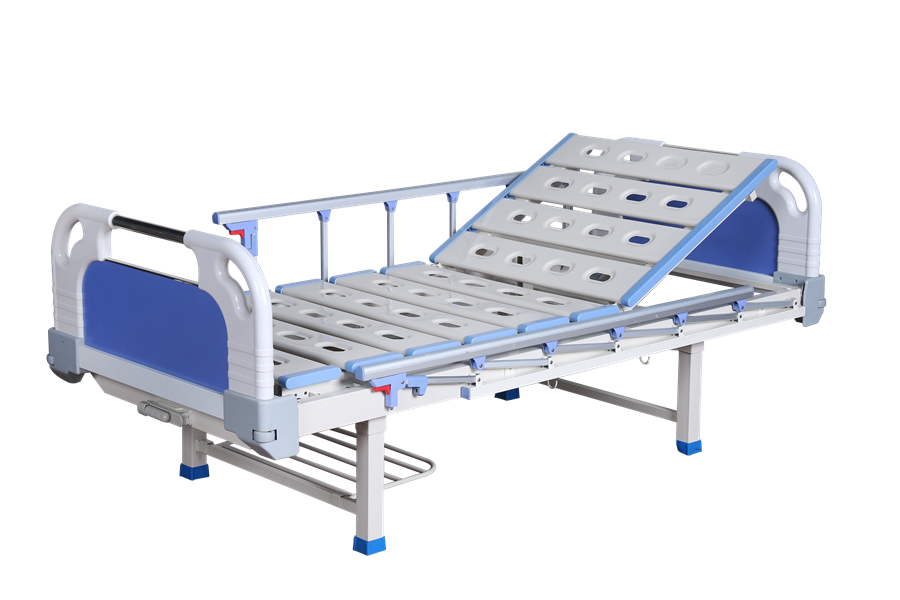

SFD-B1007A Single Crank Manual Bed
Dimensions:length 2080mm、width 900mm、Bed board height 500mm
Product Features
Product Parameter

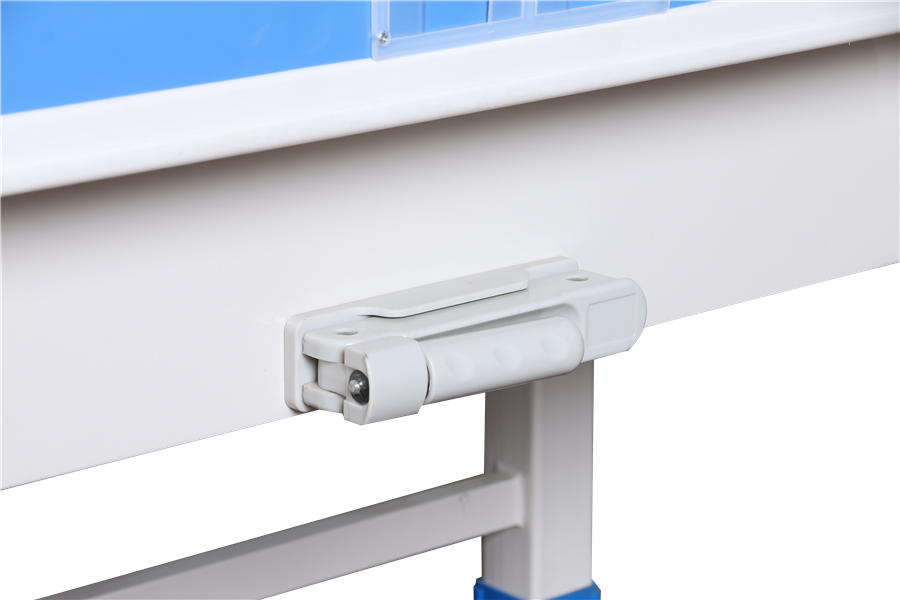

2.1 Single-group joystick: Hidden design, with posture lift logo pasted to make the operation clear at a glance. The rocker is firm and flexible, no noise, and easy to operate; it can flexibly adjust the angle of the patient's back and legs. Adopt in-place limit protection device, beautiful appearance, wear resistance, long service life
2.2 Carrying weight: ≥240kg;

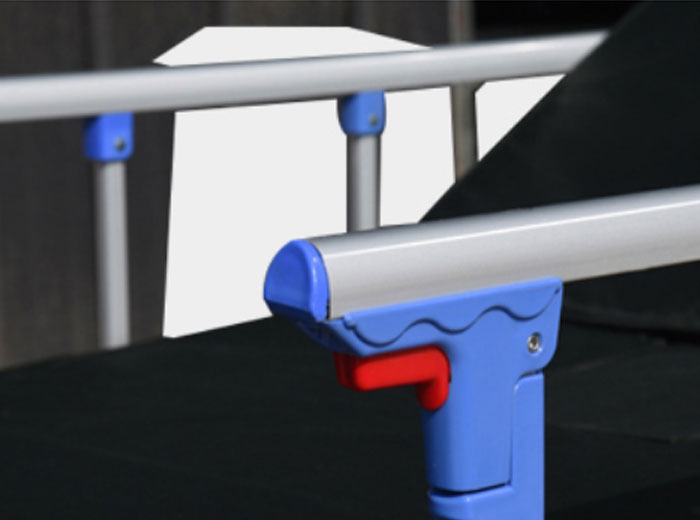

2.3 The side guardrail is 1000mm long and 390mm high, which can be lifted and turned up, which is convenient for operation and has anti-collision function.
2.4 There are 4 drip holder holes at the front and back of the bed frame, and 4 urine drainage bag hooks are provided on both sides of the bottom of the bed frame. The drip holder can be placed on the bottom of both sides of the bed frame when not in use.

Single Crank
Height of bed body:
Bed board height 500mm
01 /
Product Material
High quality carbon steel pipe
The bed frame is made of high-quality carbon steel pipe 80*40*1.5mm, double beam structure, stable and strong
High quality cold rolled carbon steel sheet
The head and tail of the bed are made of high-quality carbon steel 38 round pipe *1.2mm, and the part where the legs of the bed contact the ground is equipped with high-quality plastic foot covers, which are beautiful and generous, anti-skid and shock-absorbing
High quality seamless steel pipe
The bed panel is made of high-quality cold-rolled steel plate with one-time punching and forming corrugated, and the thickness of the plate is greater than 1.0mm.
Antibacterial powder coating
After the whole bed has been sandblasted to remove oil and rust, it is coated with double phosphating + electrostatic antibacterial powder and SGS international standard coating treatment. The bed body coating has passed the inspection and certification o
Product configuration

High quality plastic material blue foot cover
Brand new high-quality plastic material blue foot cover, contact with the ground, non-slip and shock absorption

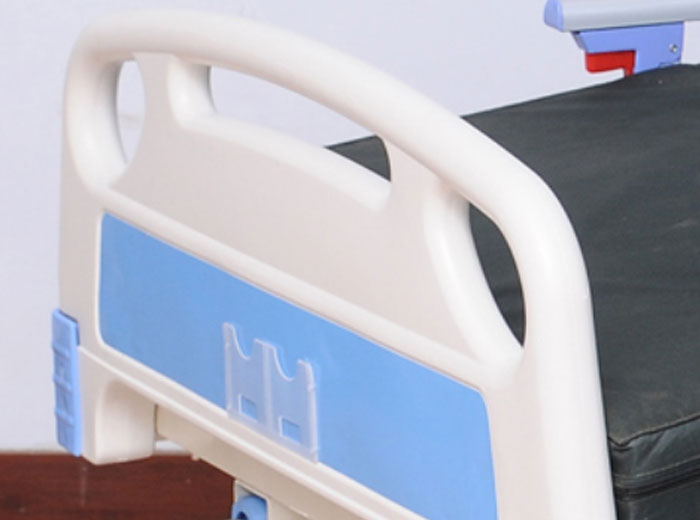

Organic plastic medical record card slot
Organic plastic medical record card slot on the outside of the footboard
Stainless steel four hook infusion stand
High-quality stainless steel four-hook infusion stand with telescopic adjustment
Single fold mattress
An 8 cm single-fold mattress that matches the bed, with ventilation holes on both sides of the mattress, and a waterproof and wear-resistant cloth jacket

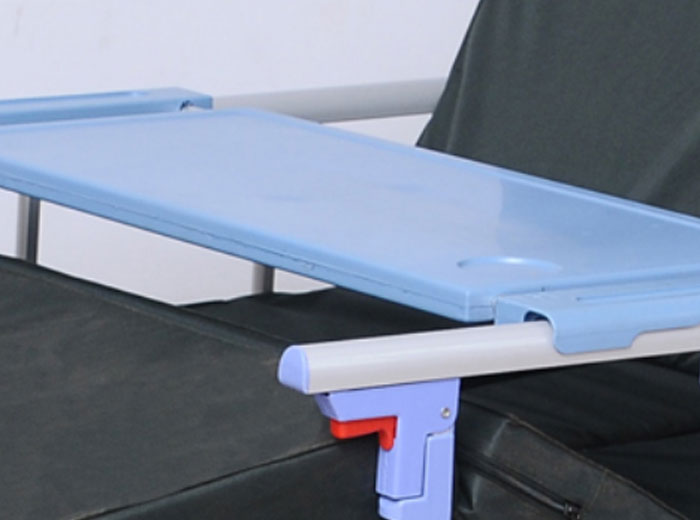

ABS bedside table
Optional ABS bedside table color and the overall coordination of the bed
