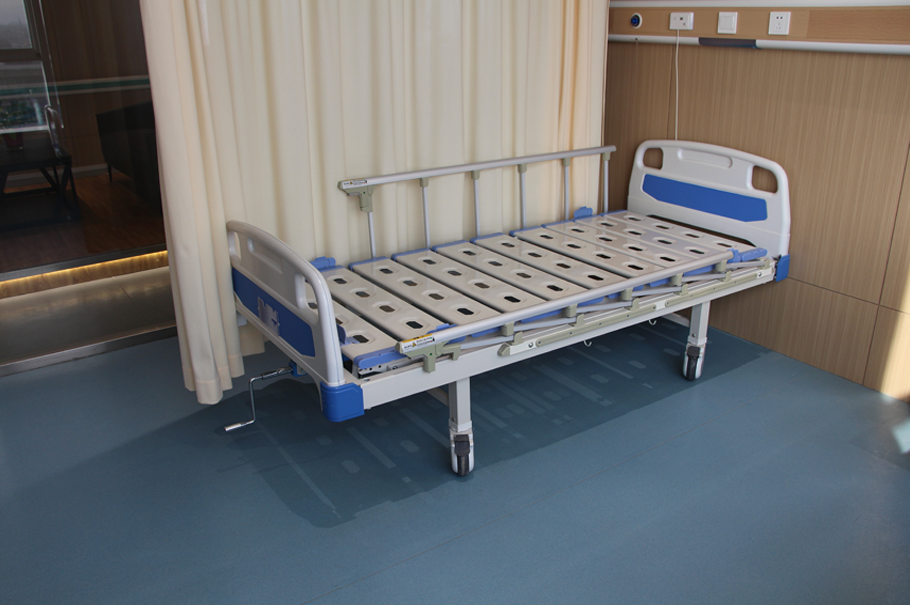

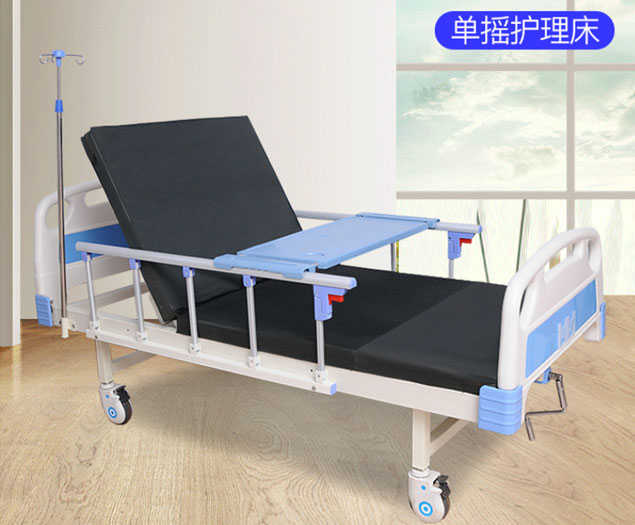

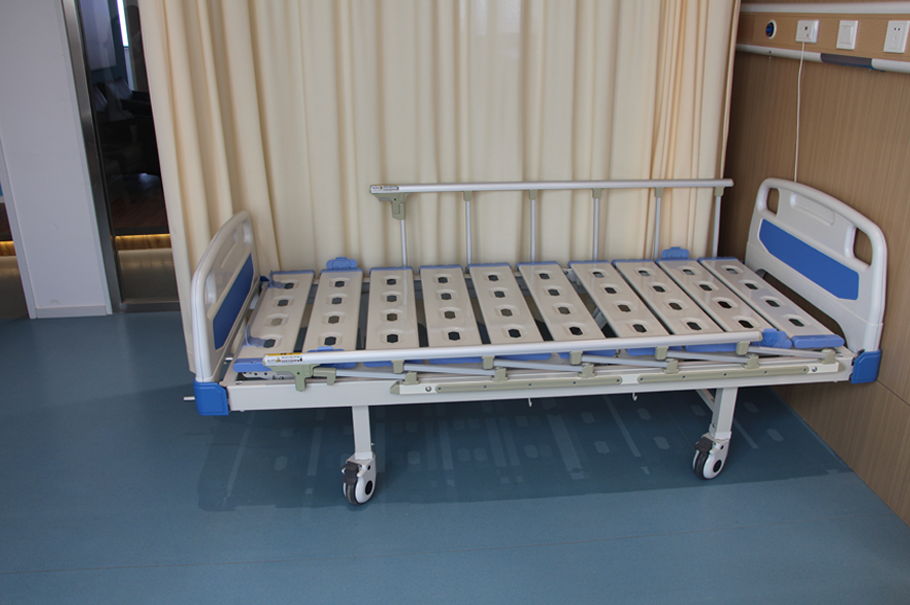

SFD-B1107 Single Crank Manual Hospital Bed
Specifications External dimensions:Length 2130mm, width 960mm, bed board height 500mm
Product Features
Product parameter
2.1 A set of joysticks: hidden design, with posture lifting logo pasted to make the operation clear at a glance. The rocker is firm and flexible, no noise, and easy to operate; it can flexibly adjust the angle of the patient's back. Adopt in-place limit protection device, beautiful appearance, wear resistance, long service life

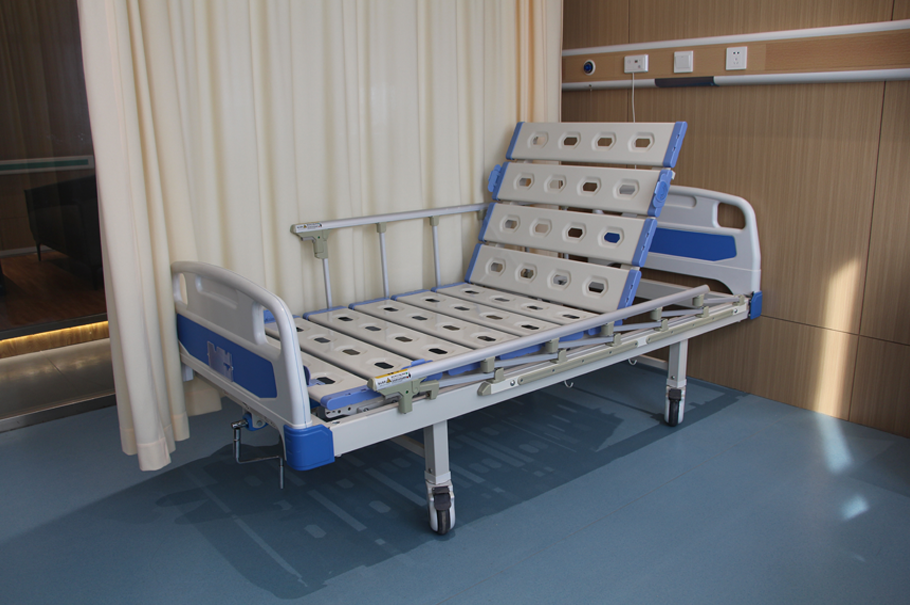

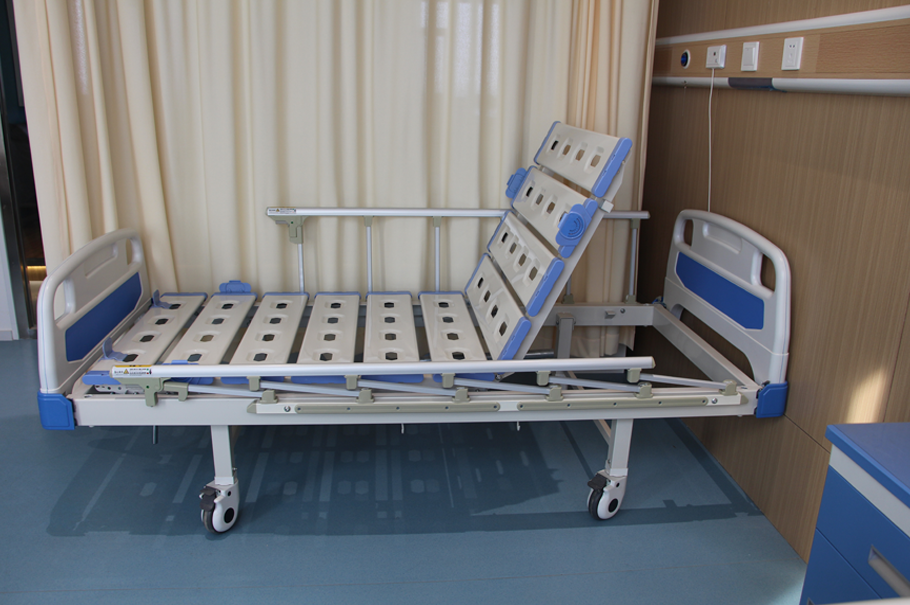

2.2 Back tilt angle 0~75±5°
2.3 Bearing weight: ≥220kg; the back bed surface adopts a double support structure, which is firm and firm. The double supports are stamped and formed by cold steel plates to strengthen the bearing capacity of the back plate. The rocker is less stressed, making it easier, more flexible and safer to shake
2.4 The side guardrail is fully covered, with a total length of 1480mm, and a height of 400mm when unfolded; D-type aluminum alloy handrails, surface hardened; steel stamping base; five aluminum alloy guardrail pillars, wear-resistant, non-deformable, shrinkable, flat, shrink It is slightly higher than the bed surface to prevent the mattress from shifting; anti-pinch design, high-strength glass fiber nylon fast positioning switch; beautiful and generous, with anti-collision function
2.5 There are 4 drip holder holes on the front and back of the bed frame, and 4 urine drainage bag hooks on both sides of the bottom of the bed frame. The drip holder can be placed at the bottom of both sides of the bed frame when not in use.
2.6 Plastic mattress rails are installed at the end of the bed surface and on both sides, which can prevent the mattress from sliding and shifting when the back plate is raised and lowered


Single Crank Manual Hospital Bed
Features
Height of bed body:
Bed board height 500mm
01 /
07
Product Material
High quality carbon steel pipe
The bed frame is made of high-quality carbon steel pipe 80*40*1.5mm, double beam structure, stable and strong
High quality cold rolled carbon steel sheet
The bed legs are high-quality cold-rolled carbon steel pipe 50*50X1.5mm
New ABS reinforced plastic material
The new ABS reinforced plastic material + high-quality wood board + stainless steel tube composite head and foot board, the outside of the bed foot board is equipped with information card slot and anti-collision wrap angle, which has anti-collision function. It can also be used as a CPR board for emergency use. Locking mechanism, easy to operate, metal hooks are used at the connection with the bed, easy to disassemble and assemble, with locking insurance
High quality seamless steel pipe
The bed panel is made of high-quality cold-rolled steel plate with one-time punching and forming, and the thickness of the plate is greater than 1.0mm. The movable joint of the back bed board adopts double support and unloading structure, and the supporting and rotating shaft is made of high-quality seamless steel pipe Φ32*3.0mm
Antibacterial powder coating
After degreasing and rust removal, the entire bed is coated with double phosphating + electrostatic antibacterial powder, and SGS international standard coating treatment. The bed body coating has passed the inspection and certification of provincial inst
Product Configuration

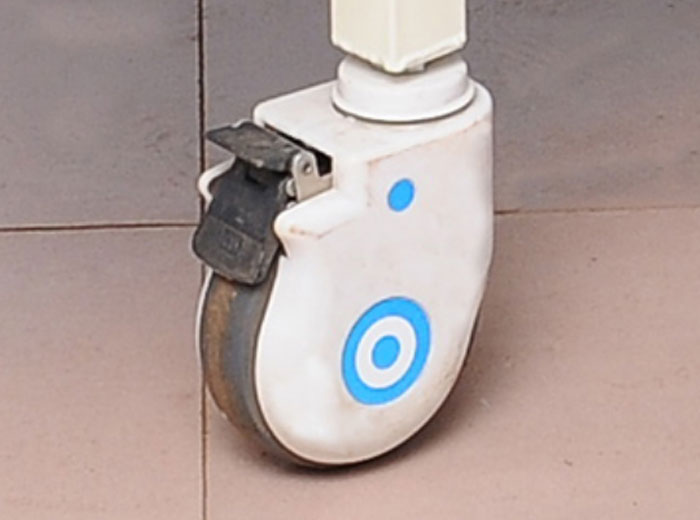

Medical 5-inch universal cover mute wheel
Equipped with a medical 5-inch universal cover mute wheel, high wear resistance, noiseless, stable and firm, the caster body is made of aluminum alloy by die-casting, self-lubricating sealed bearing, waterproof and dustproof, wheel surface polyurethane material, quiet and wear-resistant, anti-wear Winding plastic bottom pad
Organic plastic medical record card slot
Organic plastic medical record card slot on the outside of the footboard
Sundries rack
A utility shelf under the bed
High quality stainless steel four hook infusion stand
Optional high-quality stainless steel four-hook infusion stand with telescopic adjustment that matches the bed
Tri-fold mattress
Optional 6-10 cm tri-fold mattress that matches the bed, with vents on both sides of the mattress, and a waterproof and wear-resistant cloth jacket
ABS bedside table
Optional ABS bedside table or plastic steel bedside table, the color and the bed are coordinated as a whole
